”Stylish projector lift solution for desk integration.“

Projector Desk-Lift

Functionality

Typical product installations

  • DT400 Flatlift Projector Desklift installation combined with 19 inch Flatlift Monitorlift
  • Flatlift Projector lift System with 1300mm of stroke

This optically pleasing projector lift system can be variably used to integrate projectors of any size and weight into a conference table. The lifting device of the projector lift is available in different sizes and can be controlled by radio or infrared remote control. Optionally the projector lift can be controlled via media room control like e.g. EIB, Busch/Jäger, AMX, or Crestron.

Choose a product variant:

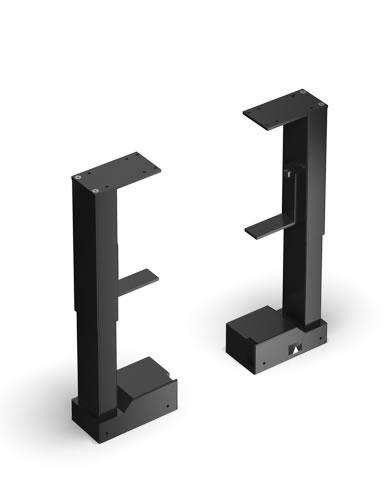

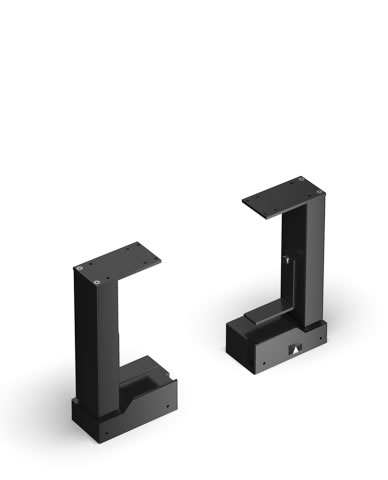

Product Views

Product Views

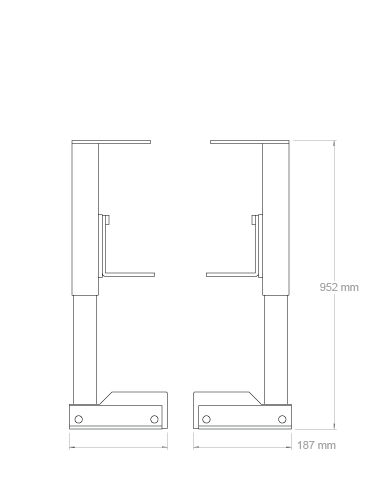

Technical Drawing

Technical data

Projector dimensionsProjector weightFitting dimensions

H = max. 360 mm

D = max. 600 mm

(W = not relevant)

max. 45 kg

450 N

incl. casing
W = min. 400 mm
D = 187 mm
H = 552 mm
Lifting limitNoise levelRoom control
–– < 45 dB connection possible
Lifting / lifting speedPedestalWarranty

400 mm

40 mm/sec
W = min. 400 mm
D = 187 mm
5 years full service



Request PDF Manual

Delivery includes

Delivery includes

Flat­lift Projector Lift, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter

Price on request. Product number: 10305

Demo systems limited available. Call for information.
