Pop-Up FLX

Functionality

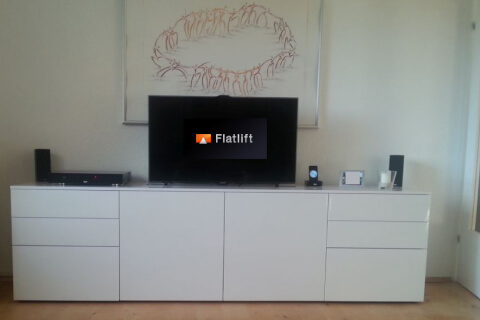

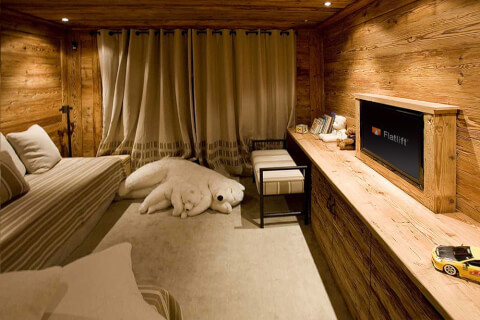

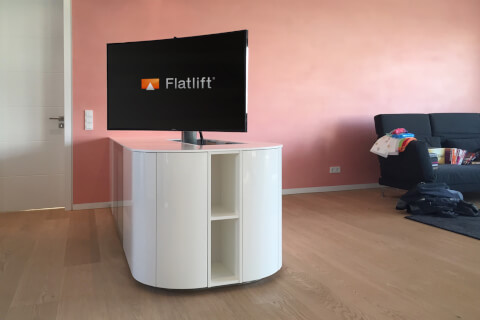

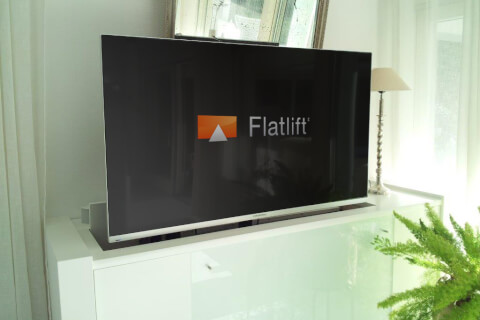

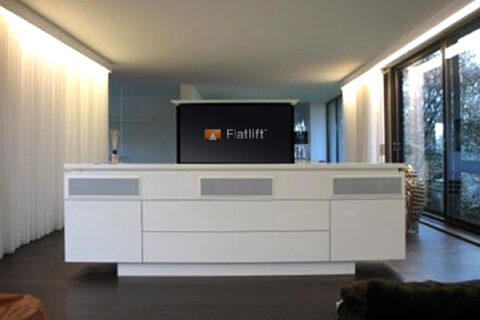

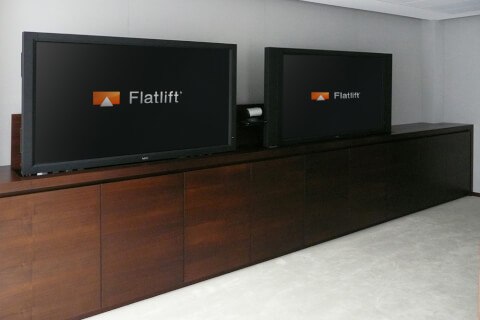

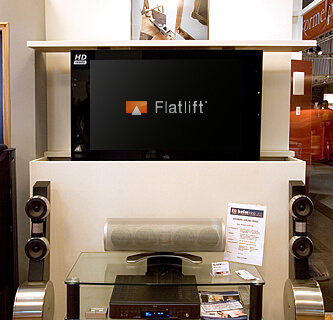

Typical product installations

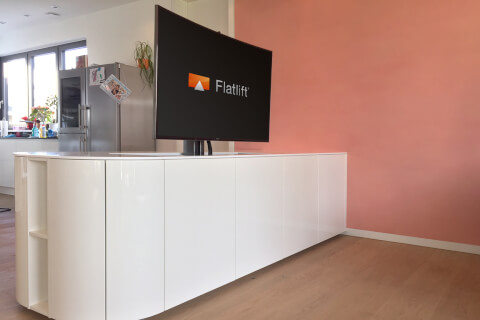

  • FLX Swivel. Projekt Partner Bossart bossart-funk.ch
  • FLX Swivel. Projekt Partner Bossart bossart-funk.ch
  • 30/65 FLX-D System

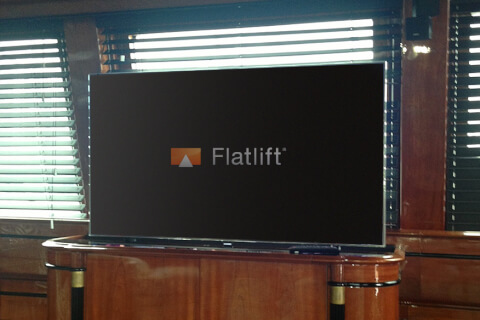

  • 30/65 FLX-D System integrated in a Masterroom of a 40m Yacht
  • 30/65 FLX-D System installed with additional swivel on 2nd Fly of a 40m Yacht
  • 30/65 FLX-T System
  • 30/65 FLX-D System
  • 30/65 FLX-D System
  • Flat Display with furniture
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system

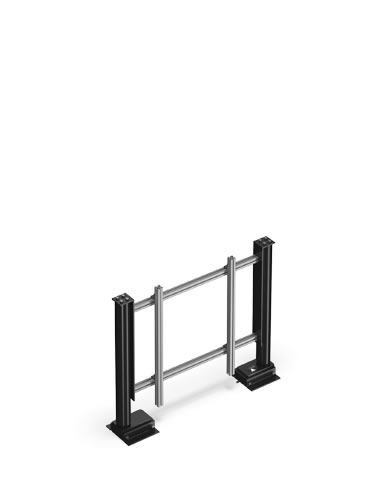

Only 97 mm deep and with a variable width X: Pop-Up FLX Plasma Lift, available in three versions, one of them has a pivoting system, clockwise or counter-clockwise, for electrical or manual tilting of the screen up to 90 °. Depending on the weight, is the special solution for mounting particularly wide flat screens while limiting installation depth. The FLX Plasma Lift Series features extremely quiet lifting action as well as Hot Panel Secure with gentle Soft Start & Stop. Lift programming is available optionally. In combination with the Lid-O-Matic add-on, Pop-Up FLX is also available with an automatic cover lid. FLX is compatible with all multi-room controls available on the market.

Choose a product variant:

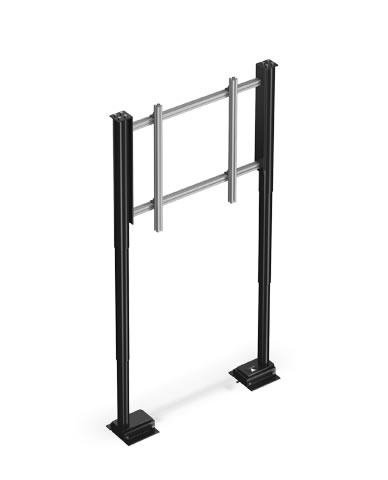

Product Views

Product Views

Technical Drawing

Technical data

TV dimensionsTV weightFitting dimensions

30 – 65 inches

H = max. 905 mm

D = max. 110 mm

(W = not relevant)

max. 100 kg

1000 N

incl. casing
W = 901 mm
D = 70 mm
H = 758 mm
Lifting limitNoise levelRoom control
adjustable to the mm < 45 dB connection possible
Lifting / lifting speedPedestalWarranty

955 mm

38 mm/sec
W = 901 mm
D = 187 mm

5 years full service

30 years LRCL*



Request PDF Manual Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Pop-Up FLX Hidden TV , control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter, automatic TV shutdown, programming software Flatlift Platinum

Price on request. Product number: 10061
