Mr. Flatlift has a solution for every budget, ask me!

Pop-Up Gold

Functionality

Typical product installations

52/60 Pop-Up Gold System installed in the pool area of a private customer
Flatlift TV Lift with additional sideswivel
Flatlift 30/42 Pop-Up Gold powered by zunndesigns
46/50 Pop-Up Gold System furniture DIY
46/50 Pop-Up Gold System lowered position
46/50 Pop-Up Gold System
46/50 Pop-Up Gold System lowered position
Pop-Up TV Furniture
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system

The Pop-Up Gold TV lift meets even the most demanding conditions presented in a room. This top-performance TV lift system is available in lifting versions from 665 mm to 1330 mm. The Pop-Up Gold lifting system is suitable for flat screens of up to 65” or a maximum TV height of 900 mm and features extremely quiet lifting action as well as Hot Panel Secure with gentle Soft Start & Stop. Includes remote control and automatic TV shutdown when lowered, lift programming can be supplied optionally. The Gold lift system is available with 120V and 230V voltages and can be supplied with an automatic lid cover in combination with the Lid-O-Matic add-on. The Gold Series is compatible with all multi-room controls available on the market.

Choose a product variant:

Product Views

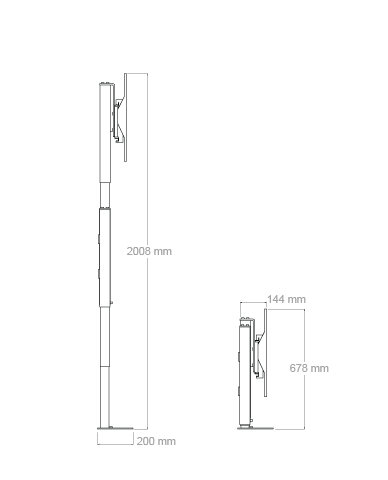

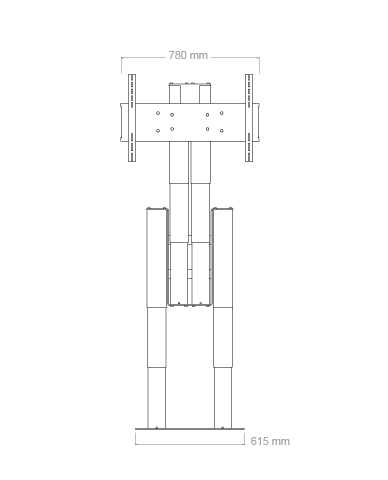

Technical Drawing

Technical data

TV dimensions	TV weight	Fitting dimensions
52-60 inches H = max. 850 mm D = max. 110 mm (W = not relevant)	max. 55 kg 550 N incl. casing	W = 780 mm D = 144 mm H = 678 mm
Lifting limit	Noise level	Room control
adjustable to the mm (optional)	< 45 dB	connection possible
Lifting / lifting speed	Pedestal	Warranty
1330 mm 84 mm/sec	W = 615 mm D = 200 mm	10 years full service 30 years LRCL*

Request PDF Manual Product Datasheet PDF

Delivery includes

Flatlift Pop-Up, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter, automatic TV shutdown

Price on request. Product number: 10005
