Pop-Up Gold


Typical product installations

  • 52/60 Pop-Up Gold System installed in the pool area of a private customer
  • Flatlift TV Lift with additional sideswivel
  • Flatlift 30/42 Pop-Up Gold powered by zunndesigns
  • 46/50 Pop-Up Gold System furniture DIY
  • 46/50 Pop-Up Gold System lowered position
  • 46/50 Pop-Up Gold System
  • 46/50 Pop-Up Gold System lowered position
  • Pop-Up TV Furniture
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system

Fulfil your sophisticated room design wishes and integrate your TV seamlessly into your living ambience with Flatlift Pop-Up Gold TV-Lift. The high-quality system allows you to retract and hide your TV without compromising on quality and durability.

The high-performance TV retract and hide system is available in various lift versions from 665 mm to 1330 mm and is suitable for flat screens up to 65" or a maximum TV height of 900 mm. Enjoy the very quiet lift movements, Hot Panel Secure with gentle Soft Start & Stop as well as an included remote control and TV limit switch.

The optionally available lift programming allows for individual adjustment to your room conditions and preferences. The Pop-Up Gold television retractable lift system is available in both 120 V and 230 V voltages to meet your individual requirements. Together with the extension, you benefit from a flexible and reliable solution that takes your television experiences to a whole new level. Trust Flatlift to elegantly recess and hide your TV.

If you are looking for an innovative and sophisticated solution to integrate your TV into your home, Flatlift is the right partner for you. Our products are not only aesthetically pleasing, but also technically sophisticated and durable.

Our TV lift systems allow you to hide or stage your TV as required, creating the optimal living experience. We place particular emphasis on high-quality materials, precise workmanship and innovative technologies.

Whether you want to hide or conceal a television or integrate it creatively into your room concept, Flatlift offers you the right solution. Rely on our many years of experience and the know-how of our experts to raise your home cinema experience to a new level.

Discover the wide range of possibilities Flatlift offers you and skilfully set the scene for your TV.


With the Lid-O-Matic add-on. The Gold Series is compatible with all multi-room controls available on the market.

Choose a product variant:

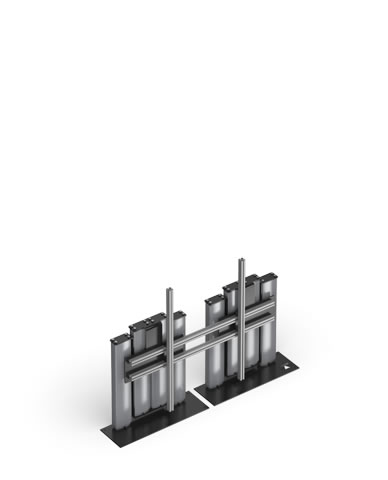

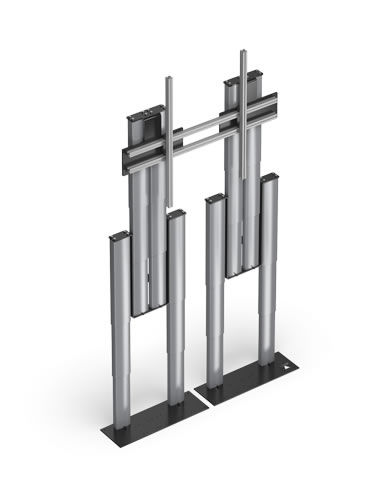

Product Views

Product Views

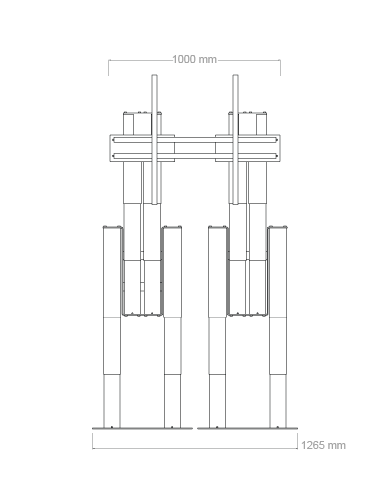

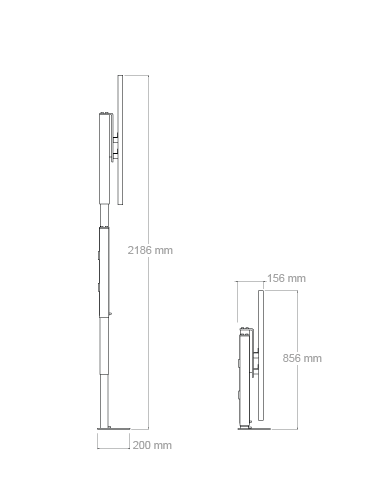

Technical Drawing

Technical data

TV dimensionsTV weightFitting dimensions

60 – 65 inches

H = max. 1000 mm

D = max. 110 mm

(W = not relevant)

max. 65 kg

650 N

incl. casing
W = 1265 mm
D = 156 mm
H = 856 mm
Lifting limitNoise levelRoom control
adjustable to the mm
< 45 dB connection possible
Lifting / lifting speedPedestalWarranty

1330 mm

84 mm/sec
W = 2 x 615 mm
D = 200 mm

10 years full service

30 years LRCL*


Request PDF Manual Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Pop-Up, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter, automatic TV shutdown

Price on request. Product number: 10109

Demo systems limited available. Call for information.

Up to 10 years manufacturer warranty!

Up to 10 years manufacturer warranty!

Flatlift offers a 10 year guarantee starting at the silver series.
