Slimline Consumer Series


Typical product installations

Slimline Consumer TV ceiling lift. This automatic tv ceiling lift bracket helps to integrate your led sreen into a partition ceiling. With a touch at the button of the remote control, the system flods your TV down without creating a noise. The Slimline Light TV ceiling lift can be used within private home projects.

Choose a product variant:

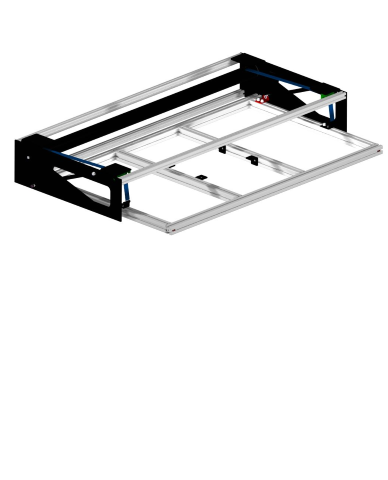

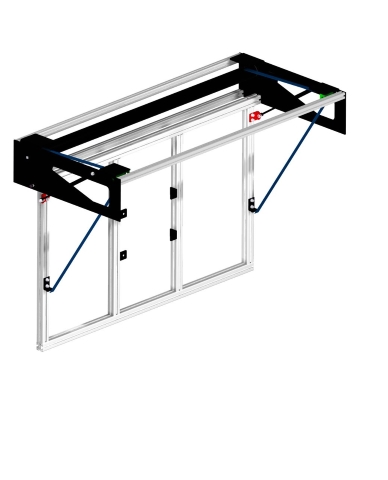

Product Views

Product Views

Technical data

TV dimensionsTV weightFitting dimensions

up to 115 inches

H = max. 1550 mm

W = max. 2550 mm

D = max. 100 mm

max. 45 kg

450 N

casing and veneer included
H = 1850 mm
W = 2800 mm
D = 216 mm
Lifting limitNoise levelRoom control
–– < 70 dB connection possible
Opening angle / speedWarranty


10 years


Request PDF Manual Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Slimline 103 CS tv flip down mechanism, control box, 230 V power cord, 24 V power supply, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter, automatic TV shutdown.

Price on request.

Product number: FL-100103-H

10 Years Guarantee!

10 Years Guarantee!

Flatlift offers a 10 year guarantee starting at the silver series. As an extra there are many other special services provided for your no worries tv-lift project.

<span class= Savings tip: Get your Flatlift at a special price">

Savings tip: Get your Flatlift at a special price

Save yourself some money with a demonstration model. Ask for available models: +49 (0) 6241 30560 0.
