Slimline Consumer Series
Functionality
Typical product installations
Slimline Consumer TV ceiling lift. This automatic tv ceiling lift bracket helps to integrate your led sreen into a partition ceiling. With a touch at the button of the remote control, the system flods your TV down without creating a noise. The Slimline Light TV ceiling lift can be used within private home projects.
Choose a product variant:

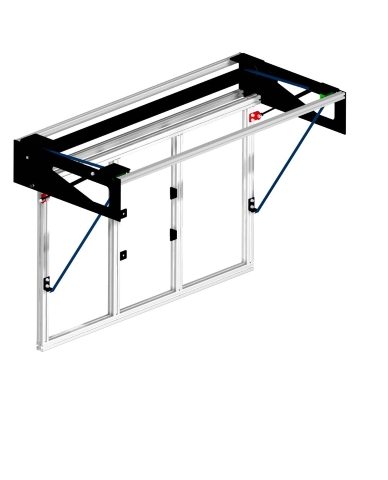

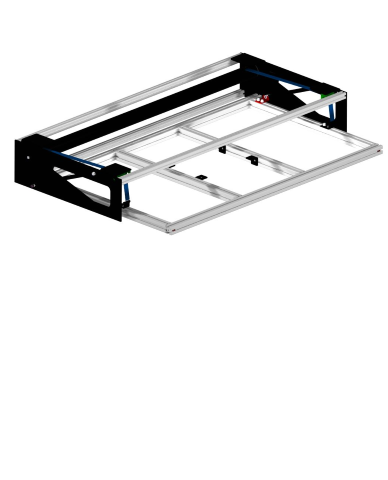

Product Views
Product Views
Technical data
| TV dimensions | TV weight | Fitting dimensions |
|---|---|---|
|
up to 65 inches H = max. 890 mm W = max. 1400 mm D = max. 100 mm |
max. 30 kg 300 N casing and veneer included |
H = 216 mm W = 1626 mm D = 1100 mm |
| Lifting limit | Noise level | Room control |
| –– | < 70 dB | connection possible |
| Opening angle / speed | Warranty | |
|
90° 5°/sec |
30 years LRCL* |
Request PDF Manual Product Datasheet PDF
Delivery includes
Delivery includes
Flatlift Slimline CS tv flip down mechanism, control box, 230 V power cord, 24 V power supply, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter, automatic TV shutdown.
Price on request.
Product number: FL-10012-H
