Picture Lift System - TV hidden behind picture or artwork
Functionality
Typical product installations
Hide TV behind picture
Hide TV behind picture
Picture lift system to position the TV invisibly in the room
Picture lift system to position the TV invisibly in the room
TV invisible behind picture
Hide your TV elegantly behind a picture with the Flatlift TV behind picture system. Our innovative picture lift system offers the perfect combination of design and functionality. Made in Germany, Flatlift guarantees the highest quality and durability for your home cinema or living room experience.
Flatlift picture lift systems are compatible with popular smart home systems and allow for easy integration into your smart home. Experience seamless connectivity and automated control to make your TV disappear behind the picture of your choice.
With Hot Panel Secure and gentle Soft Start & Stop, the Flatlift picture lift system ensures your TV is always safely positioned without vibration. Enjoy the aesthetics of a stylish picture that transforms into a high-quality TV at the touch of a button.
Request your individual offer today via our contact form and experience the impressive combination of art and technology with the Flatlift TV behind picture system.
The Flatlift Frame-O-Lift System is suitable for high-quality oil and acrylic artworks.
Choose a product variant:

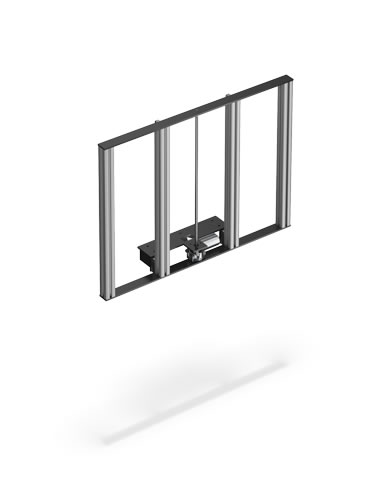

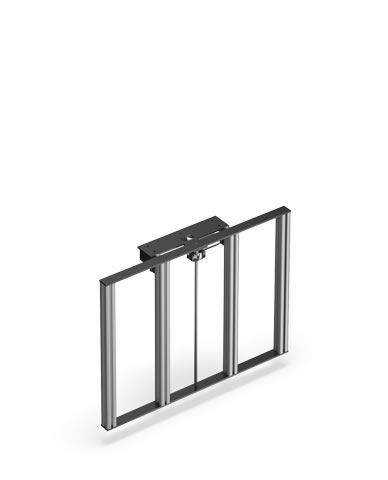

Product Views
Product Views

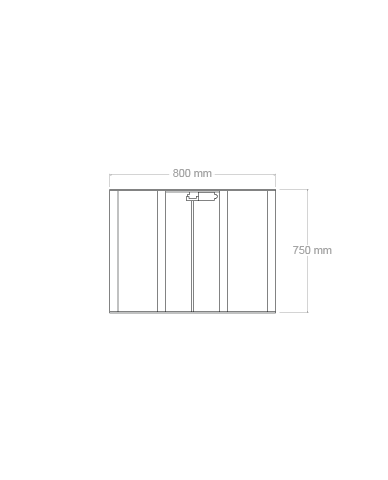

Technical Drawing
Technical data
| TV dimensions | Frame weight | Fitting dimensions |
|---|---|---|
|
up to 42 inches H = max. 675 mm (W, D = not relevant) |
max. 25 kg 250 N |
W = 635 mm D = 131 mm H = 780 mm |
| Lifting limit | Noise level | Room control |
| adjustable | < 45 dB | connection possible |
| Lifting / lifting speed | Mounting bracket | Warranty |
|
675 mm 25 mm/sec |
W = 340 mm D = 99 mm |
30 years LRCL* |
Request PDF Manual
Delivery includes
Delivery includes
Flatlift Frame-O-Lift Picture Panel Lift, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter
Price on request. Product number: 10014
