”Harmonious design with mobile room elements.“

Picture lift

Functionality

Typical product installations

50 inch Frame-O-Lift
50 inch Frame-O-Lift down
50 inch Frame-O-Lift down
50 inch Frame-O-Lift up
50 inch Frame-O-Lift swivel (swivel out is custom addon)

Frame-O-Lift panel lift is the elegant solution for screens fixed on and in the partition wall. At the push of a button a picture, a mirror, or a wall panel moves out and thus discreetly covers the set when it is not used. In addition to Panel Secure due to gentle Soft Start & Stop, the picture lift system features extremely quiet lifting action. Remote control included. Frame-O-Lift Panel Lift systems are compatible with all multi-room controls available on the market.

The Flatlift Frame-O-Lift System is suitable for high-quality oil and acrylic artworks.

Choose a product variant:

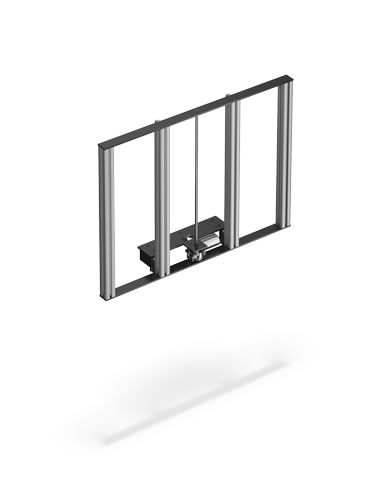

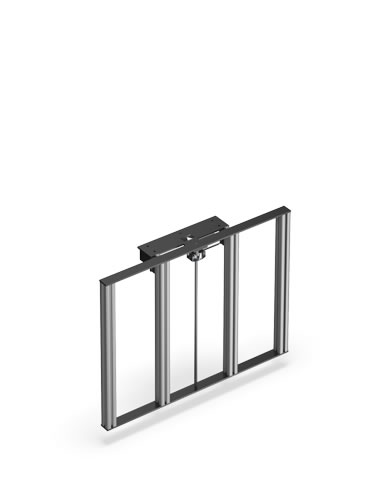

Product Views

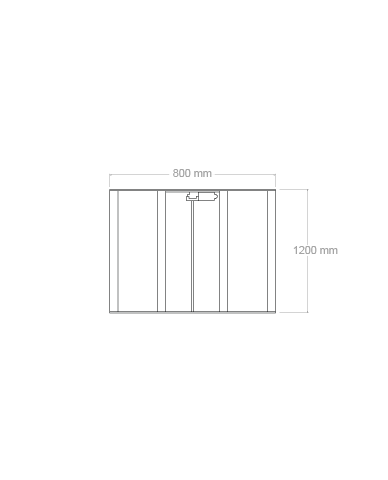

Technical Drawing

Technical data

TV dimensions	Frame weight	Fitting dimensions
up to 60 inches H = max. 1125 mm (W, D = not relevant)	max. 40 kg 400 N	W = 635 mm D = 131 mm H = 1320 mm
Lifting limit	Noise level	Room control
adjustable	< 45 dB	connection possible
Lifting / lifting speed	Mounting bracket	Warranty
1125 mm 20 mm/sec	W = 340 mm D = 99 mm	10 years warranty 30 years LRCL*

Request PDF Manual Product Datasheet PDF

Delivery includes

Flatlift Frame-O-Lift Picture Panel Lift, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter

Price on request. Product number: 10016
