”Professional TV swivel system: design meets convenience.“

Superflat Swivel


Typical product installations

  • 85 inch wall swivel bracht 45 degrees swiveled
  • 85 inch Superflat wall swivel bracket
  • 52 inch Superflat swivel system
  • 40 inch Superflat Swivel System custom solution combined with FLX Pop-Up

The extremely quiet drive system facilitates a vibration-free and smooth sideward movement of the flat screen at the push of a button. A swivelling angle of up to 90° allows it to be moved into the desired viewing position. Superflat Swivel is an extra-flat TV swivelling system with a particularly elegant, timeless aluminium design. Equipped with Hot Panel Secure due to gentle Soft Start & Stop and suitable for sets with a screen diagonal from 27” to 103”. The TV swivelling system Superflat Swivel is compatible with all multi-room controls available on the market.

Choose a product variant:

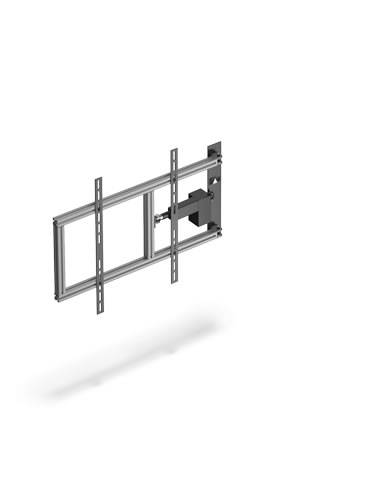

Product Views

Product Views

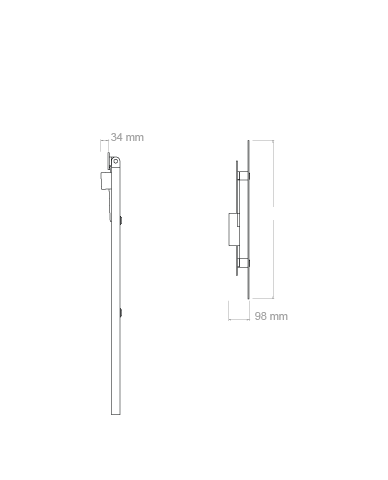

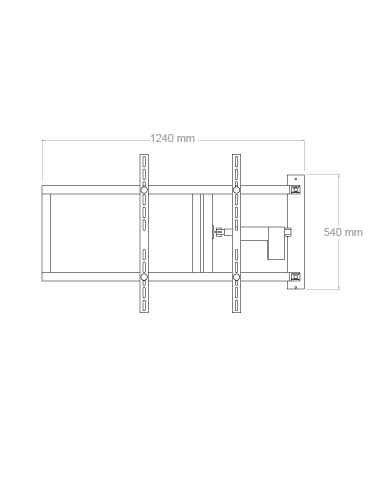

Technical Drawing

Technical data

TV dimensionsTV weightFitting dimensions

43 – 50 inches

W = max. 1300

D = max. 120 mm

(H = not relevant)

max. 45 kg

450 N

incl. casing
W = 1240 mm
D = 98 mm
H = 750 mm
Lifting limitNoise levelRoom control
adjustable to the mm (optional) < 40 dB connection possible
Lifting / lifting speedWall mounting bracketWarranty

swivelling angle 90°

W = 80 mm
H = 540 mm

10 years full service

30 years LRCL*


Request PDF Manual Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Superflat Swivel, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter

Price on request. Product number: 10121
