Pop-Up ECO TV Lift Mechanism

Functionality

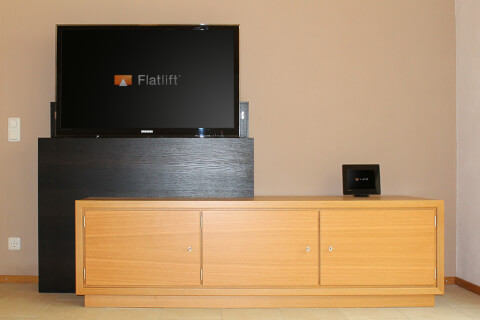

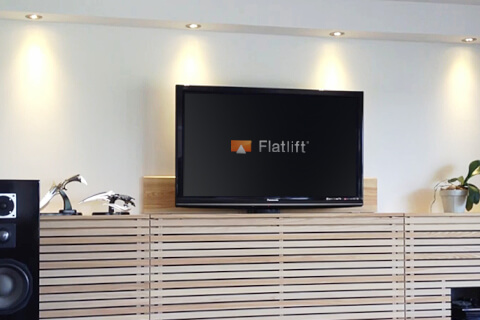

Typical product installations

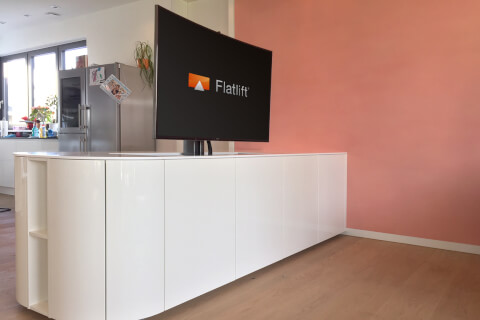

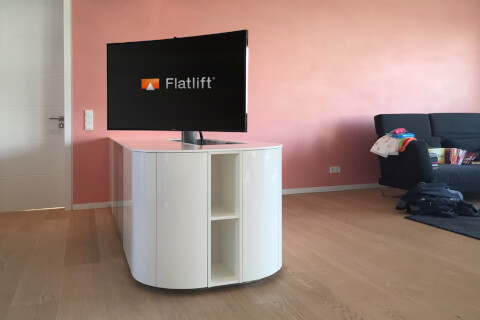

  • Flatlift ECO650 installed in a funiture made by a swiss customer
  • ECO914 installed in a private DIY project in Austria
  • Flatlift ECO650
  • Flatlift ECO780
  • Flatlift ECO914
  • Flatlift ECO914
  • Flatlift ECO914

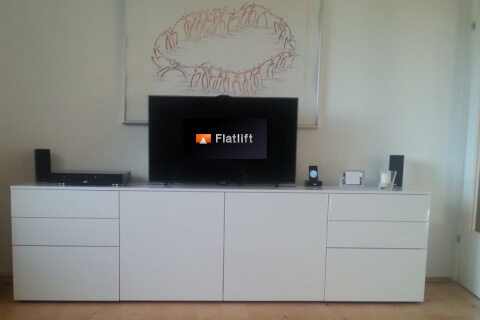

  • TV Lift furniture

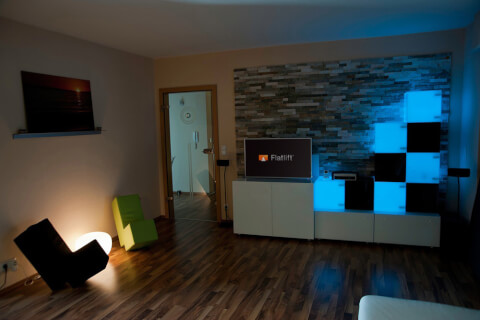

  • Flatlift ECO installed in a design cube furniture
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system

The easy-to-install TV Lift Mechanism Pop-Up Economy Series is an all-in-one TV lift Mechanism solution designed for floor and wall mounting, representing the ideal starter model: extremely quiet lifting action, programmable via remote control and universally adjustable TV mounting bracket. Available with strokes of 650mm, 780mm and 914mm this product covers most of the offered Flat TV in the market.

Choose a product variant:

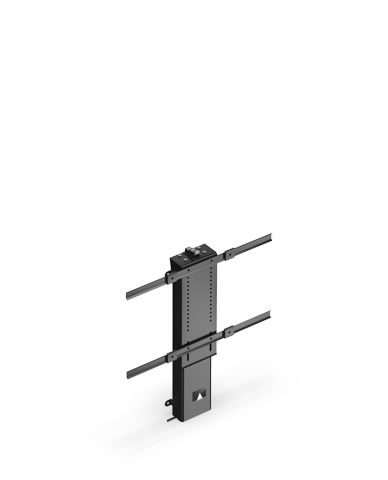

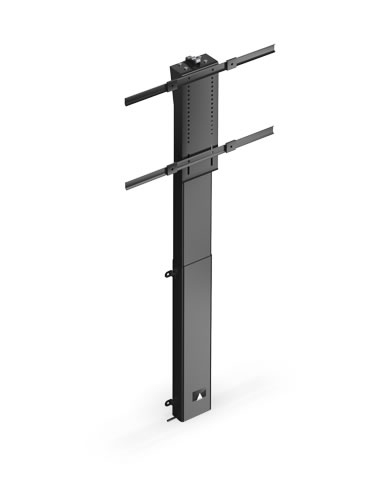

Product Views

Product Views

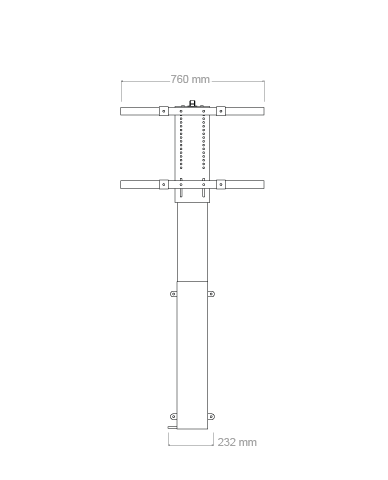

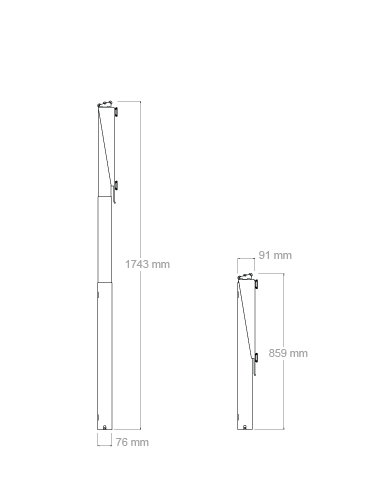

Technical Drawing

Technical data

TV dimensionTV weightFitting dimensions

26 – 55 inches

H = max. 860 mm

D = max. 120 mm

(W = not relevant)

max. 55 kg

550 N

incl. casing
W = 760 mm
D = 120 mm
H = 859 mm
Lifting limitNoise levelRoom control
adjustable < 45 dB ––
Lifting / lifting speedPedestalWarranty

914 mm

35 mm/Sek.
B = 232 mm
T = 91 mm
3 Years



Product manual PDF Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Pop-Up TV Lift mechanism, control box (integrated 230 V power cord), 433Mhz radio remote receiver and handheld transmitter, hand-held switch,(VESA max. 700x430)

Product number: 10078-914-3
