Pop-Up ECO TV Lift Mechanism

Functionality

Typical product installations

Flatlift ECO650 installed in a funiture made by a swiss customer
ECO914 installed in a private DIY project in Austria
Flatlift ECO650
Flatlift ECO780
Flatlift ECO914
Flatlift ECO914
Flatlift ECO914
TV Lift furniture
Flatlift ECO installed in a design cube furniture
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system

The easy-to-install TV Lift Mechanism Pop-Up Economy Series is an all-in-one TV lift Mechanism solution designed for floor and wall mounting, representing the ideal starter model: extremely quiet lifting action, programmable via remote control and universally adjustable TV mounting bracket. Available with strokes of 650mm, 780mm and 914mm this product covers most of the offered Flat TV in the market.

Choose a product variant:

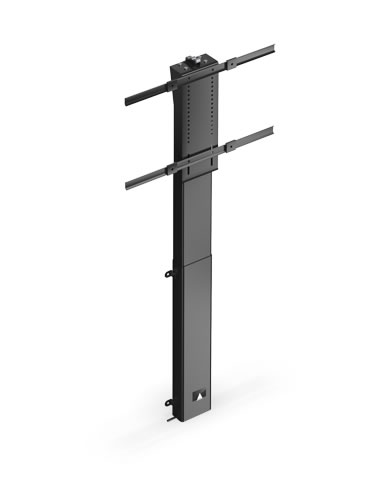

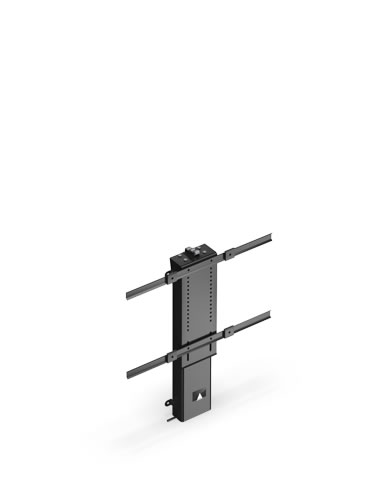

Product Views

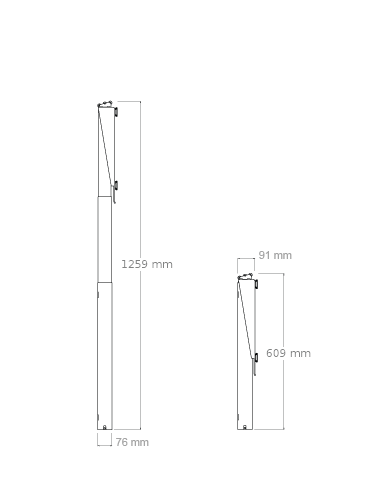

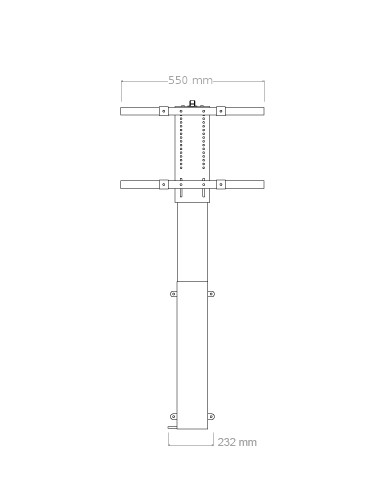

Technical Drawing

Technical data

TV dimensions	TV weight	Fitting dimensions
26 – 43 inches H = max. 600 mm D = max. 120 mm (W = not relevant)	max. 55 kg 550 N incl. casing	W = 550 mm D = 120 mm H = 609 mm
Lifting limit	Noise level	Room control
adjustable	< 45 dB	––
Lifting / lifting speed	Pedestal	Warranty
650 mm 35 mm/sec	W = 232 mm D = 91 mm	3 years

Request PDF Manual Product Datasheet PDF

Delivery includes

Flatlift Pop-Up Tv Lift Mechanism, control box (integrated 230 V power cord), IR receiver eye, hand-held IR transmitter, hand-held switch, (VESA max. 500x330)

Product number: 10078-650-3
