Flatlift has a solution for every budget, ask me!

Extraflat Televisionlift

Functionality

Typical product installations

  • Electric TV lift 32 inch
  • TV lift electric 43 inch
  • Electric TV lift cabinet
  • The Turnable TV Lift from Flatlift for best integration results.
  • TV lift electric Kitchen or cooking island
  • TV lift electric 50 inch
  • TV lift electric 75 inch
  • Electric TV lift 77 inch
  • TV lift electric 80 inch
  • TV lift electric 42 inch
  • 30/42 Extraflat without Display
  • Electric swivelling TV lift
  • Electric TV lift cabinet
  • TV lift electric 80 inch
  • TV lift electric 85 inch
  • Electric TV lift 98 inch

Enjoy full media design freedom with our high-quality and durable TV lift systems from Flatlift. Our Pop-Up Extraflat TV lift series is ideal for creative room concepts and furniture with a shallow depth, thanks to the minimal depth installation dimension of only 80 mm.

The Extraflat TV lift series is suitable for flat-screen TVs from 30 to 50 inches and also offers a 360° manually swivelling version for maximum flexibility. Our TV lift systems feature very quiet lifting movements, "Hot Panel Secure" and gentle Soft Start & Stop to increase the life of your TV and ensure smooth operation.

Remote control is included and optional lift programming is available. Trust Flatlift to provide your living space with unique and innovative solutions for hiding or displaying your TV.

If you are looking for more innovative solutions for your home, Flatlift offers a wide range of high quality and durable TV lift systems tailored to different requirements and room conditions. Our expertise in the industry allows us to offer you customised solutions that are both aesthetically pleasing and functional.

Our focus is on providing you with the best possible experience by designing products that are easy to install, user-friendly and built to last. Each of our TV lift systems comes with comprehensive warranties and support to ensure you are always satisfied and your investment is protected.

Discover the variety of Flatlift TV lift systems and transform your living space into a stylish and comfortable home that meets the needs of your family and lifestyle.



In combination with the Lid-O-Matic add-on, Pop-Up Extraflat Televisionlift is also available with an automatic cover lid. The Extraflat motorized tv lift Series is compatible with all multi-room controls available on the market.

Choose a product variant:

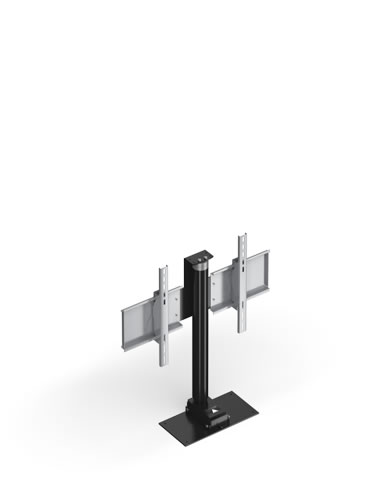

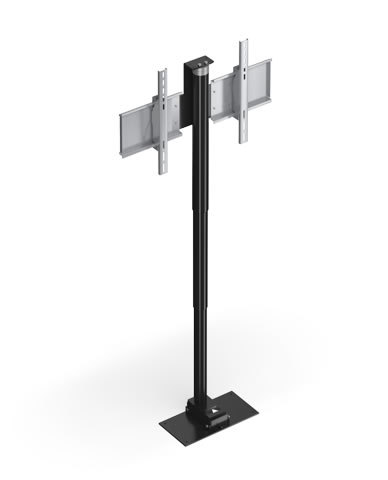

Product Views

Product Views

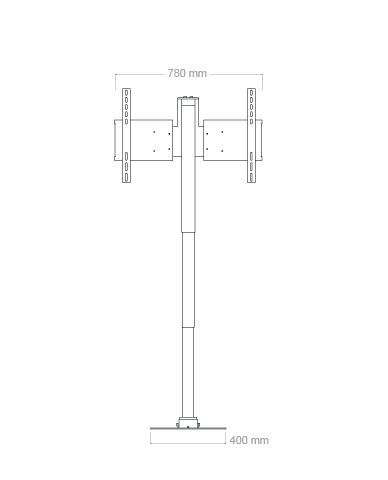

Technical Drawing

Technical data

TV dimensionsTV weightFitting dimensions

43 – 50 inches

H = max. 905 mm

D = 120 mm

(W = not relevant)

max. 45 kg

450 N

incl. casing
W = 780 mm
D = 85 mm
H = 840 mm
Lifting limitNoise levelRoom control
adjustable to the mm
(optional)
< 45 dB connection possible
Lifting / lifting speedPedestalWarranty

955 mm

38 mm/sec
W = 400 mm
D = 200 mm

10 years full service

30 years LRCL*



Request PDF Manual

Delivery includes

Delivery includes

Flat­lift Pop-Up Extraflat TV Lift swivel, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter

Price on request. Product number: 10106



Note

This product can be manually swivelled by 360°. A zero position safety switch is installed.

Up to 10 years manufacturer warranty!

Up to 10 years manufacturer warranty!

Flatlift offers a 10 year guarantee starting at the silver series.

You would like to find out more about our TV lift systems?

We gladly advise you on our TV lift systems or we will get back to you with detailed information on your enquiry as quickly as possible. Just talk to us.
