Extraflat Televisionlift


Typical product installations

  • 30/42 Pop-Up Extraflat
  • 43/50 Pop-Up Extraflat
  • 43/50 Pop-Up Extraflat furniture integration
  • The Turnable TV Lift from Flatlift for best integration results.
  • 43/50 Pop-Up Extraflat 360° manual swivel kitchen integration in Hong Kong
  • 30/42 Pop-Up Extraflat
  • 43/50 Pop-Up Extraflat installed in Exhibition furniture
  • 30/42 Pop-Up Extraflat Yachtintegration DIY
  • 43/50 Pop-Up Extraflat with BeoVision and additional speaker mount
  • 30/42 Pop-Up Extraflat Yachtinstallation Florida USA
  • 30/42 Extraflat without Display
  • 43/50 Pop-Up Extraflat at Saturn Market Bad Homburg
  • Flatscreen with furniture
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system

Enjoy the freedom to design your own media room concepts: with its extremely slim design requiring an installation depth of only 80 mm, the Pop-Up Extraflat Televisionlift series is a perfect match for furniture with limited depth. The Extraflat Televisionlift Series is suitable for flat screens from 30” to 50” and also available in a version which can be manually swivelled by 360°. In addition to Hot Panel Secure and gentle Soft Start & Stop, the Television lift system features extremely quiet lifting action. The remote control is included, lift programming is optional available. In combination with the Lid-O-Matic add-on, Pop-Up Extraflat Televisionlift is also available with an automatic cover lid. The Extraflat motorized tv lift Series is compatible with all multi-room controls available on the market.

Choose a product variant:

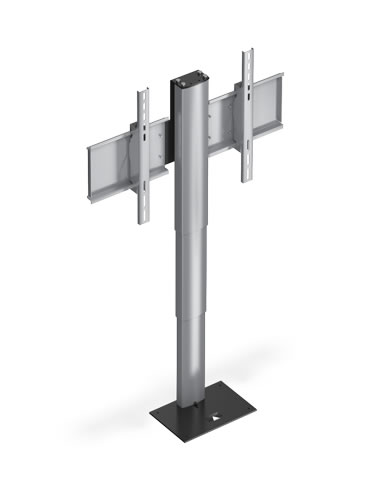

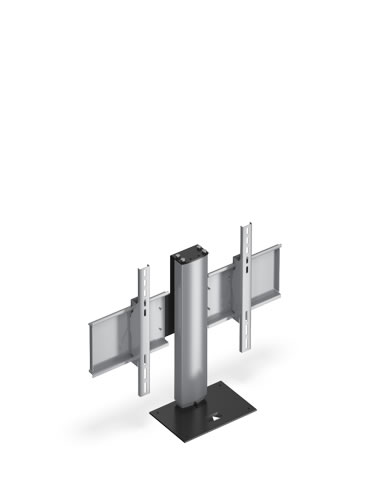

Product Views

Product Views

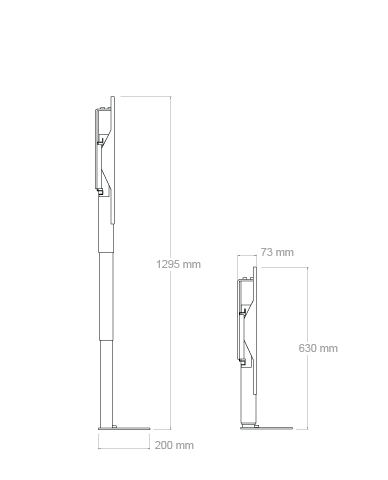

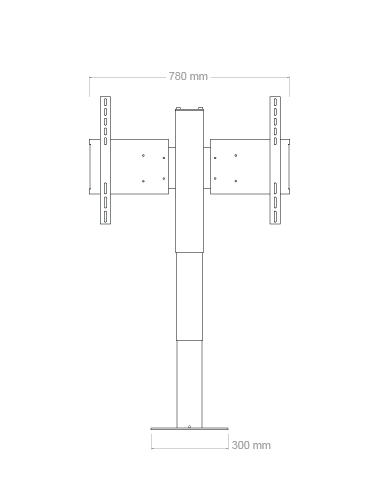

Technical Drawing

Technical data

TV dimensionsTV weightFitting dimensions

30 – 42 inches

H = max. 615 mm

D = 120 mm

(W = not relevant)

max. 35 kg

350 N

incl. casing
W = 780 mm
D = 73 mm
H = 630 mm
Lifting limitNoise levelRoom control
adjustable to the mm
< 45 dB connection possible
Lifting / lifting speedPedestalWarranty

665 mm

42 mm/sec
W = 300 mm
D = 200 mm

10 years full service

30 years LRCL*


Request PDF Manual Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Pop-Up Extraflat Televisionlift, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter

Price on request. Product number: 10104
