Extraflat Televisionlift
Functionality

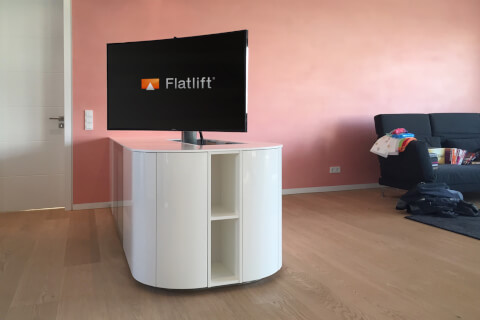

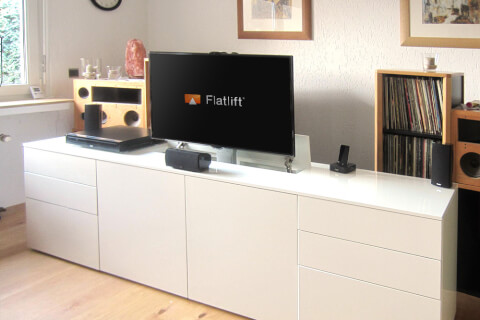

Typical product installations
30/42 Pop-Up Extraflat
43/50 Pop-Up Extraflat

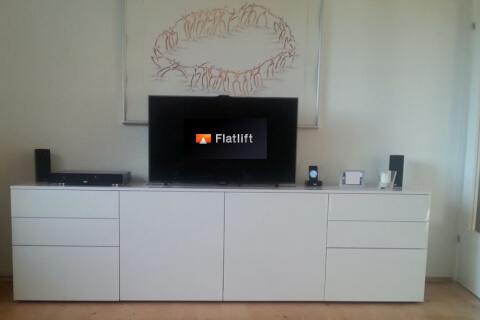

43/50 Pop-Up Extraflat furniture integration
The Turnable TV Lift from Flatlift for best integration results.

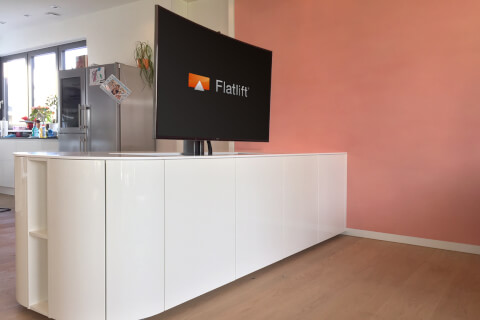

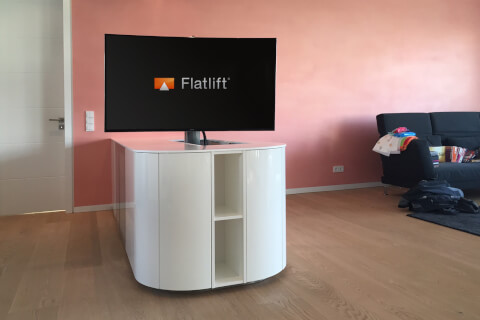

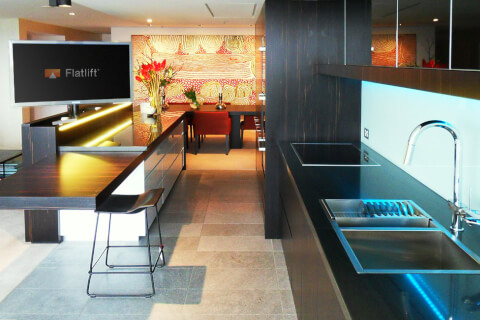

43/50 Pop-Up Extraflat 360° manual swivel kitchen integration in Hong Kong
30/42 Pop-Up Extraflat

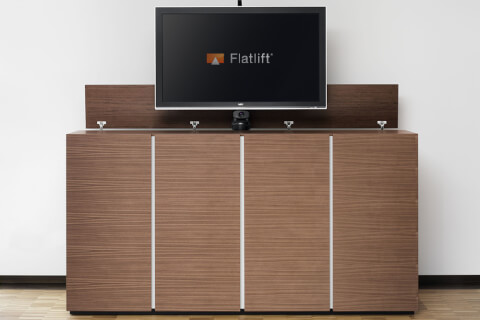

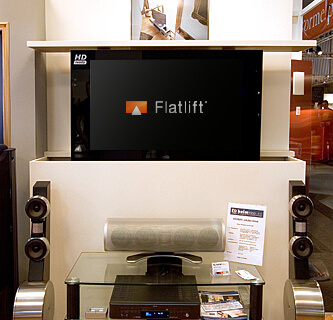

43/50 Pop-Up Extraflat installed in Exhibition furniture

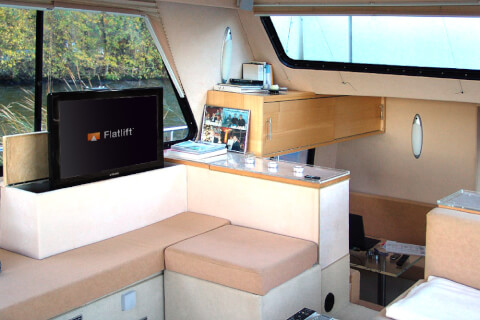

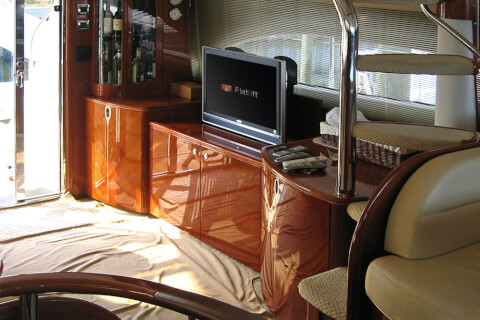

30/42 Pop-Up Extraflat Yachtintegration DIY
43/50 Pop-Up Extraflat with BeoVision and additional speaker mount
30/42 Pop-Up Extraflat Yachtinstallation Florida USA
30/42 Extraflat without Display

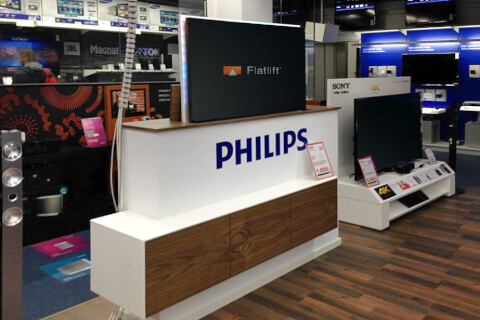

43/50 Pop-Up Extraflat at Saturn Market Bad Homburg
Flatscreen with furniture
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system
Enjoy the freedom to design your own media room concepts: with its extremely slim design requiring an installation depth of only 80 mm, the Pop-Up Extraflat Televisionlift series is a perfect match for furniture with limited depth. The Extraflat Televisionlift Series is suitable for flat screens from 30” to 50” and also available in a version which can be manually swivelled by 360°. In addition to Hot Panel Secure and gentle Soft Start & Stop, the Television lift system features extremely quiet lifting action. The remote control is included, lift programming is optional available. In combination with the Lid-O-Matic add-on, Pop-Up Extraflat Televisionlift is also available with an automatic cover lid. The Extraflat motorized tv lift Series is compatible with all multi-room controls available on the market.
Choose a product variant:

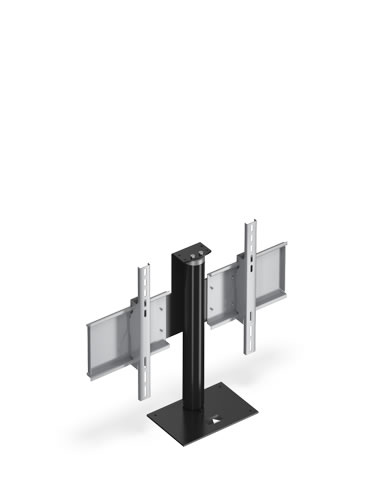

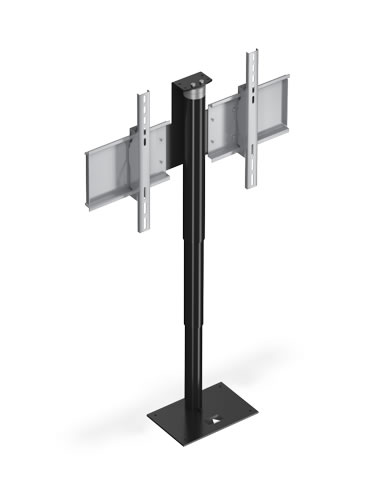

Product Views
Product Views

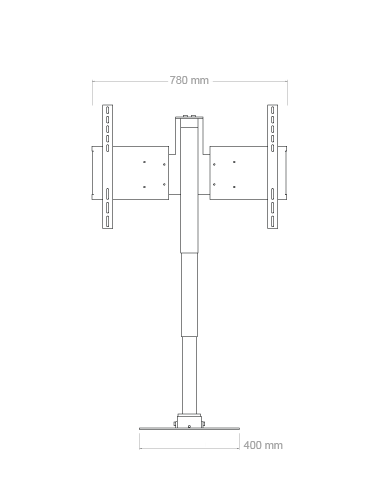

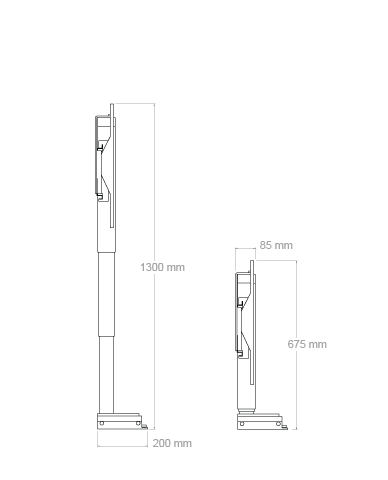

Technical Drawing
Technical data
| TV dimensions | TV weight | Fitting dimensions |
|---|---|---|
|
26 – 40 inches H = max. 575 mm D = 120 mm (W = not relevant) |
max. 30 kg 300 N incl. casing |
W = 780 mm D = 85 mm H = 675 mm |
| Lifting limit | Noise level | Room control |
| adjustable to the mm (optional) |
< 45 dB | connection possible |
| Lifting / lifting speed | Pedestal | Warranty |
|
625 mm 35 mm/sec |
W = 400 mm D = 200 mm |
30 years LRCL* |
Request PDF Manual Product Datasheet PDF
Delivery includes
Delivery includes
Flatlift Pop-Up Extraflat TV lift Mechanism with swivel, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter
Price on request. Product number: 10166
Note
This product can be manually swivelled by 360°. A zero position safety switch is installed.
