Flatlift Pop-Up Silver automated TV Lift


Typical product installations

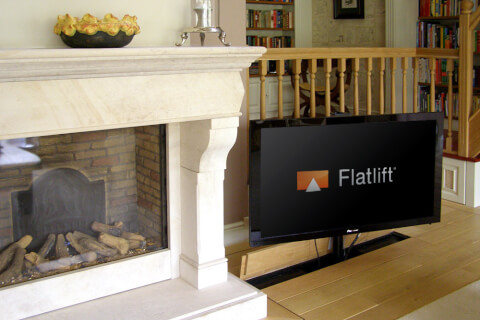

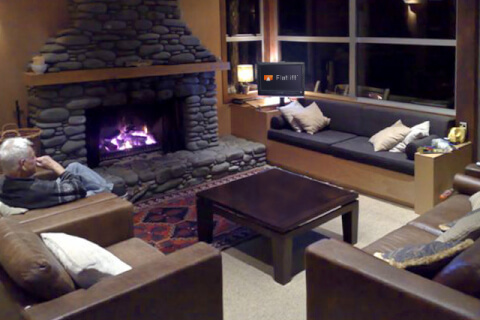

  • TV installed in living room. Project Partner Bossart

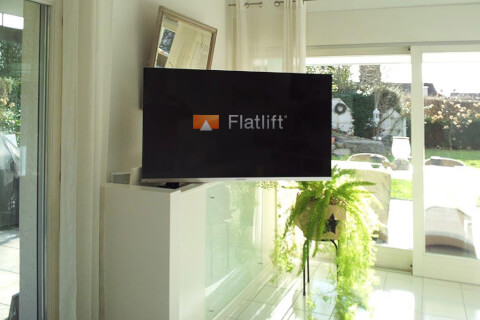

  • Tv-Lift with Swivel Projekt Partner Bossart
  • 43/50 Pop-Up Silver 360° manual swivel
  • 30/42 Pop-Up Silver furniture integration in Dubai UAE

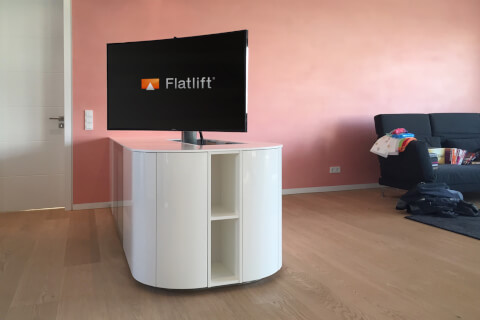

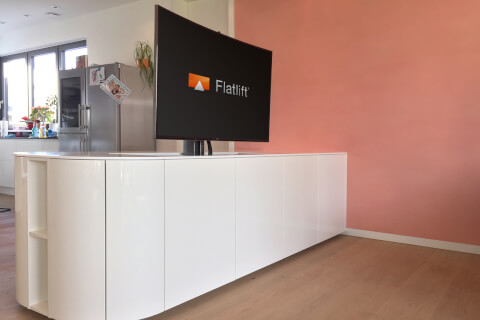

  • 30/42 Pop-Up Silver 360° manual swivel

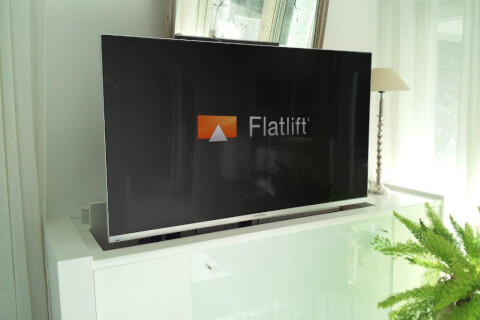

  • 30/42 Pop-Up Silver
  • 43/50 Pop-Up Silver

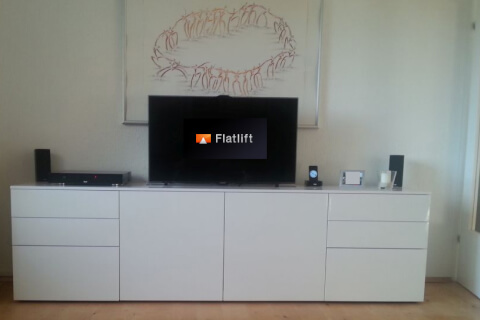

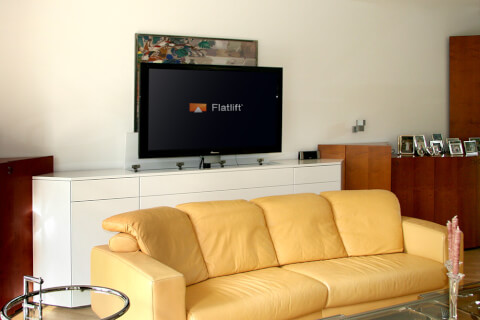

  • Television Lift lowboard
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system
  • 52/60 Platinum TV Lift with automatic 360° swivel system

The automated TV lift series Pop-Up Silver is a richly equipped allrounder for floor, wall, and furniture mounting. It impresses with its extremely quiet lifting action and Hot Panel Secure with gentle Soft Start & Stop. The automated Silver TV lift series is suitable for flat screens measuring 30” to 50” and is available in a 120V or 230V version as well as in a version which can be manually swivelled by 360°. Lift programming is optional. In combination with the Lid-O-Matic add-on, Pop-Up Silver automated tv lift is also available with an automatic cover lid. The automated silver tv lift Silver Series is compatible with all multi-room controls available on the market.

Choose a product variant:

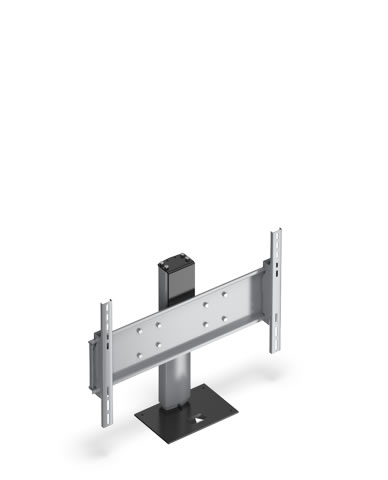

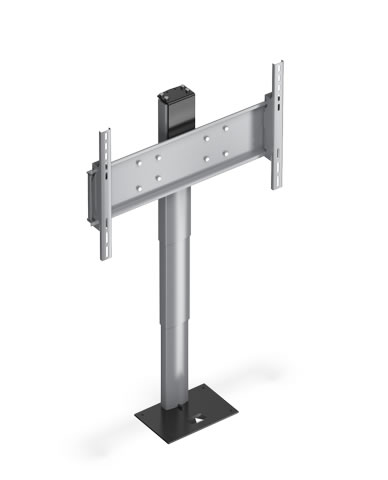

Product Views

Product Views

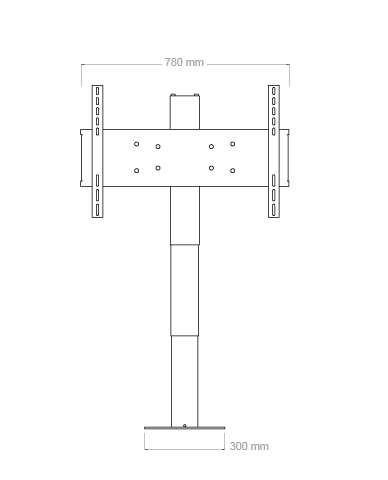

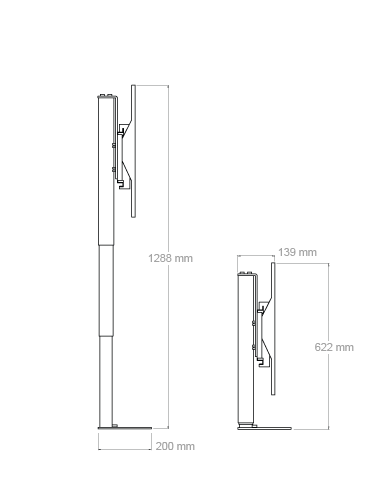

Technical Drawing

Technical data

TV dimensionsTV weightFitting dimensions

30 – 42 inches

H = max. 615 mm

D = max. 100 mm

(W = not relevant)

max. 35 kg

350 N

incl. casing
W = 780 mm
D = 139 mm
H = 622 mm
Lifting limitNoise levelRoom control
adjustable to the mm (optional) < 45 dB connection possible
Lifting / lifting speedPedestalWarranty

665 mm

42 mm/sec
W = 300 mm
D = 200 mm

10 years full service

30 years LRCL*


Request PDF Manual Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Pop-Up automated tv lift, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter

Price on request.  Product number: 10051
