Flatlift Pop-Up Silver automated TV Lift
Functionality
Typical product installations
TV installed in living room. Project Partner Bossart bossart-funk.ch
Tv-Lift with Swivel Projekt Partner Bossart bossart-funk.ch
43/50 Pop-Up Silver 360° manual swivel
30/42 Pop-Up Silver furniture integration in Dubai UAE
30/42 Pop-Up Silver 360° manual swivel
30/42 Pop-Up Silver
43/50 Pop-Up Silver
Television Lift lowboard
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system
The automated TV lift series Pop-Up Silver is a richly equipped allrounder for floor, wall, and furniture mounting. It impresses with its extremely quiet lifting action and Hot Panel Secure with gentle Soft Start & Stop. The automated Silver TV lift series is suitable for flat screens measuring 30” to 50” and is available in a 120V or 230V version as well as in a version which can be manually swivelled by 360°. Lift programming is optional. In combination with the Lid-O-Matic add-on, Pop-Up Silver automated tv lift is also available with an automatic cover lid. The automated silver tv lift Silver Series is compatible with all multi-room controls available on the market.
Choose a product variant:

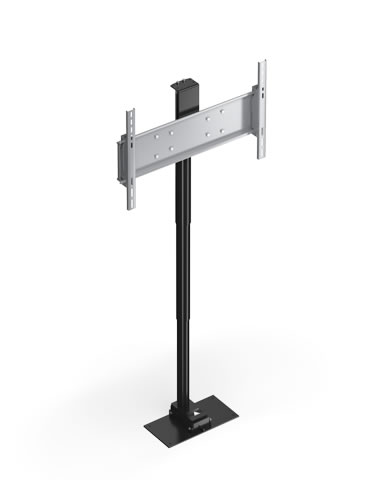

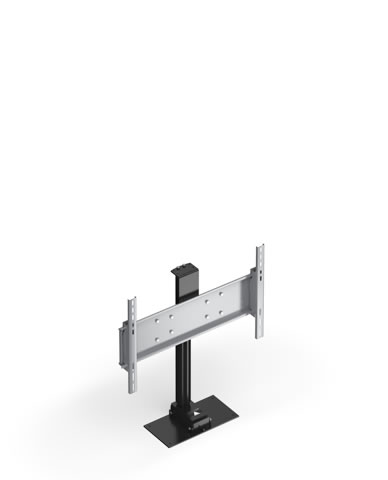

Product Views
Product Views

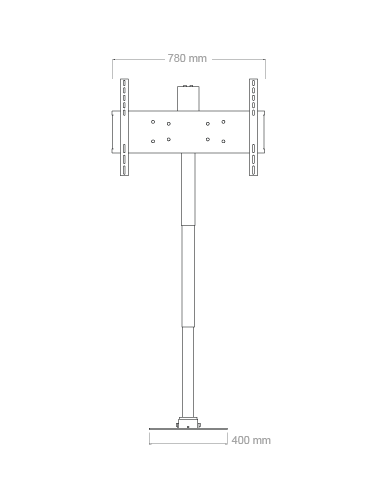

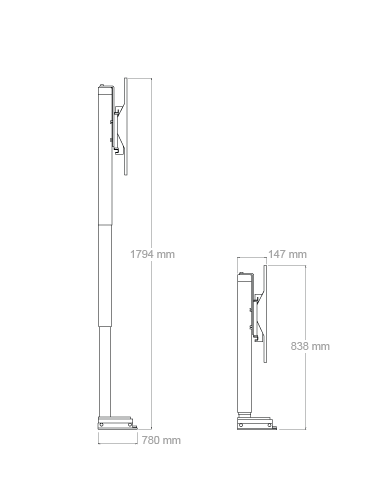

Technical Drawing
Technical data
| TV dimensions | TV weight | Fitting dimensions |
|---|---|---|
|
43 – 50 inches H = max. 905 mm D = max. 120 mm (W = not relevant) |
max. 45 kg 450 N incl. casing |
W = 780 mm D = 147 mm H = 838 mm |
| Lifting limit | Noise level | Room control |
| adjustable to the mm (optional) | < 45 dB | connection possible |
| Lifting / lifting speed | Pedestal | Warranty |
|
955 mm 38 mm/sec |
W = 400 mm D = 200 mm |
30 years LRCL* |
Request PDF Manual Product Datasheet PDF
Delivery includes
Delivery includes
Flatlift Pop-Up automated tv lift, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter
Price on request. Product number: 10041
Note
This product can be manually swivelled by 360°. A zero position safety switch is optionally available.
