Flatlift Pop-Up Silver automated TV Lift
Functionality
Typical product installations
TV installed in living room. Project Partner Bossart bossart-funk.ch
Tv-Lift with Swivel Projekt Partner Bossart bossart-funk.ch
43/50 Pop-Up Silver 360° manual swivel
30/42 Pop-Up Silver furniture integration in Dubai UAE
30/42 Pop-Up Silver 360° manual swivel
30/42 Pop-Up Silver
43/50 Pop-Up Silver
Television Lift lowboard
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system
52/60 Platinum TV Lift with automatic 360° swivel system

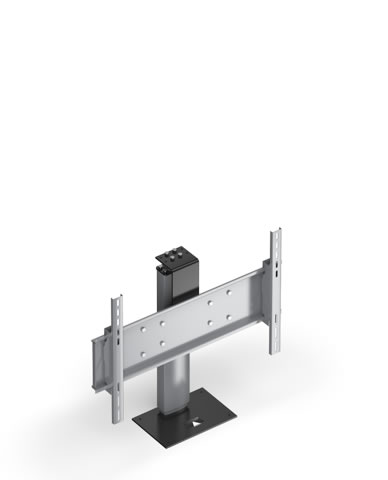

The automated TV lift series Pop-Up Silver is a richly equipped allrounder for floor, wall, and furniture mounting. It impresses with its extremely quiet lifting action and Hot Panel Secure with gentle Soft Start & Stop. The automated Silver TV lift series is suitable for flat screens measuring 30” to 50” and is available in a 120V or 230V version as well as in a version which can be manually swivelled by 360°. Lift programming is optional. In combination with the Lid-O-Matic add-on, Pop-Up Silver automated tv lift is also available with an automatic cover lid. The automated silver tv lift Silver Series is compatible with all multi-room controls available on the market.
Choose a product variant:
Product Views
Product Views

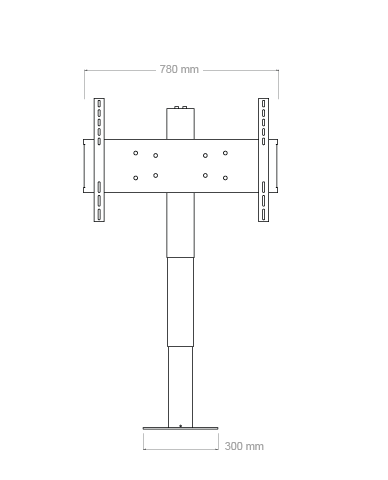

Technical Drawing
Technical data
| TV dimensions | TV weight | Fitting dimensions |
|---|---|---|
|
30 – 42 inches H = max. 615 mm D = max. 100 mm (W = not relevant) |
max. 35 kg 350 N incl. casing |
W = 780 mm D = 175 mm H = 664 mm |
| Lifting limit | Noise level | Room control |
| adjustable to the mm (optional) | < 45 dB | connection possible |
| Lifting / lifting speed | Pedestal | Warranty |
|
665 mm 42 mm/sec |
W = 300 mm D = 200 mm |
30 years LRCL* |
Request PDF Manual Product Datasheet PDF
Delivery includes
Delivery includes
Flatlift Pop-Up automated tv lift with swivel, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter
Price on request. Product number: 10103
Note
This product can be manually swivelled by 360°. A zero position safety switch is optionally available.
Automated TV lift with swivel
Automated TV lift with swivel you can built into a cabinet or a furniture. Flatlift offers automated tv lifts with swivel manually or electrically. The Silver automated tv lift Series is with manual swivel. This swivel mechanism allows you to turn the automated tv lift when it is in TV up position. The automated tv lift is remote controlled and can be controlled over drycontacts either. Flatlift sells automated tv lift systems with or without swivel mechanism. If you do like this product we will be very happy to receive a Facebook like. If you have any questions regarding automated tv lifts please do not hesitate to contact us. Flatlift will answer all your questions instantly.
