”Ultra-flat professional TV ceiling lift system for limited installation depths.“

Slimline TV ceiling lift

Functionality

Typical product installations

  • 50" Flatlift Slimline Yachtintegration
  • 50" Flatlift Slimline Yachtintegration Masterroom
  • 50" Flatlift Slimline living room installation
  • 65" Flatlift Slimline OLMA St. Gallen
  • 65" Flatlift Slimline ceiling tv lift OLMA St. Gallen CH
  • 32" Flatlift Slimline bedroom installation

Top-standard presentation: a screen folding down from the ceiling with an opening angle of 90° to 95° is a particular highlight for individual room concepts with limited installation heights, e.g. on a yacht. The Slimline tv ceiling lift is one of the slimmest tv ceiling lifts and available for 32” to 65” flat screens. For the special large-screen experience it is even offered for sizes from 103” to 115”. In addition to Hot Panel Secure due to gentle Soft Start & Stop, the Flatlift ceiling tv lift features extremely quiet lifting action. It is compatible with all multi-room controls available on the market.

Choose a product variant:

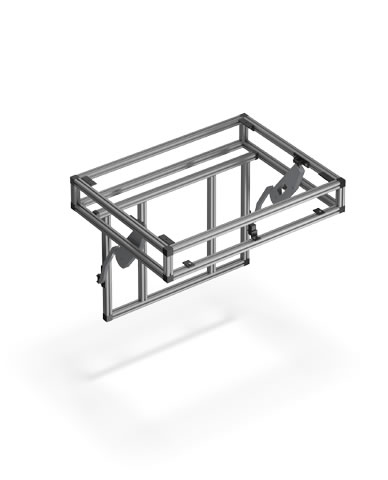

Product Views

Product Views

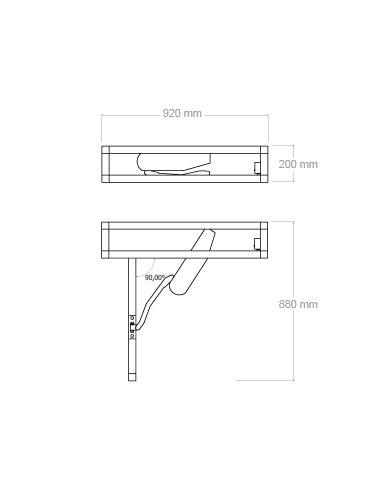

Technical Drawing

Technical data

TV dimensionsTV weightFitting dimensions

up to 32 inches

H = max. 680 mm

W = max. 950 mm

D = max. 160 mm

max. 90 kg

900 N

casing and veneer included
H = 920 mm
W = 1200 mm
D = 200 mm
Lifting limitNoise levelRoom control
–– < 70 dB connection possible
Opening angle / speedWarranty

90°

2°/sec

10 years full service

30 years LRCL*




Request PDF Manual Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Slimline tv flip down mechanism, control box, 230 V power cord, 24 V power supply, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter, automatic TV shutdown

Price on request. Product number: 10010
