”Professional TV swivel system: design meets convenience.“

Superflat Swivel

Functionality

Typical product installations

85 inch wall swivel bracht 45 degrees swiveled
85 inch Superflat wall swivel bracket
52 inch Superflat swivel system
40 inch Superflat Swivel System custom solution combined with FLX Pop-Up

The extremely quiet drive system facilitates a vibration-free and smooth sideward movement of the flat screen at the push of a button. A swivelling angle of up to 90° allows it to be moved into the desired viewing position. Superflat Swivel is an extra-flat TV swivelling system with a particularly elegant, timeless aluminium design. Equipped with Hot Panel Secure due to gentle Soft Start & Stop and suitable for sets with a screen diagonal from 27” to 103”. The TV swivelling system Superflat Swivel is compatible with all multi-room controls available on the market.

Choose a product variant:

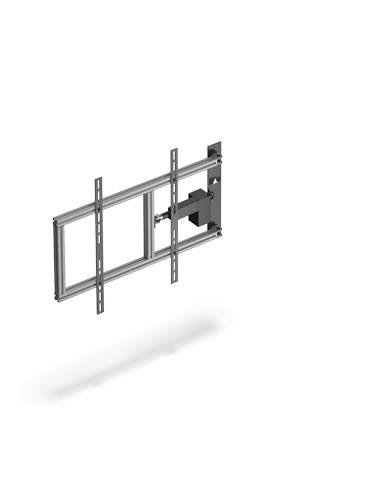

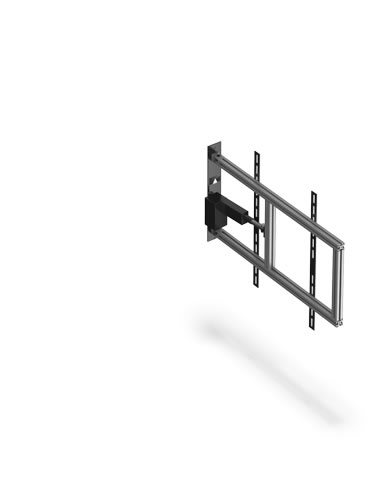

Product Views

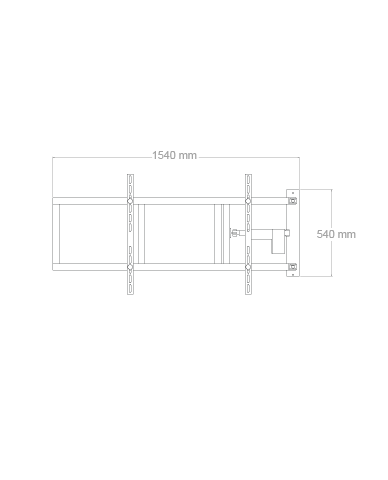

Technical Drawing

Technical data

TV dimensions	TV weight	Fitting dimensions
52 – 65 inches W = max. 1400 D = max. 120 mm (H = not relevant)	max. 55 kg 550 N incl. casing	W = 1540 mm D = 98 mm H = 750 mm
Lifting limit	Noise level	Room control
adjustable to the mm (optional)	< 40 dB	connection possible
Lifting / lifting speed	Wall mounting bracket	Warranty
swivelling angle 90° 5°/sek	W = 80 mm H = 540 mm	10 years full service 30 years LRCL*

Request PDF Manual Product Datasheet PDF

Delivery includes

Flatlift Superflat Swivel, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter

Price on request. Product number: 10122
