”Professional TV swivel system: design meets convenience.“

Superflat Swivel

Functionality

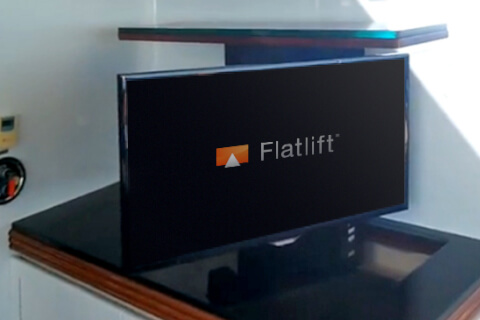

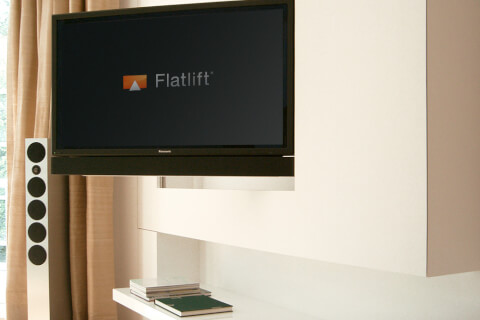

Typical product installations

  • 85 inch wall swivel bracht 45 degrees swiveled
  • 85 inch Superflat wall swivel bracket
  • 52 inch Superflat swivel system
  • 40 inch Superflat Swivel System custom solution combined with FLX Pop-Up

The extremely quiet drive system facilitates a vibration-free and smooth sideward movement of the flat screen at the push of a button. A swivelling angle of up to 90° allows it to be moved into the desired viewing position. Superflat Swivel is an extra-flat TV swivelling system with a particularly elegant, timeless aluminium design. Equipped with Hot Panel Secure due to gentle Soft Start & Stop and suitable for sets with a screen diagonal from 27” to 103”. The TV swivelling system Superflat Swivel is compatible with all multi-room controls available on the market.

Choose a product variant:

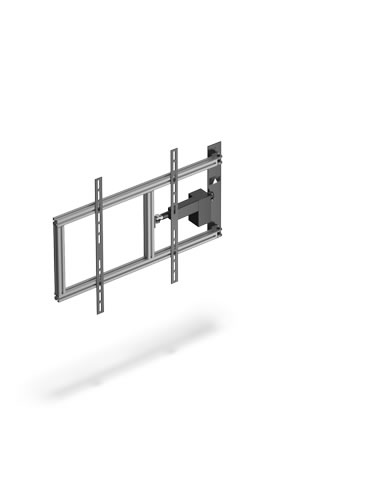

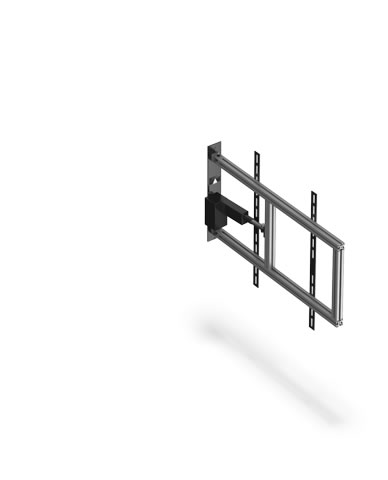

Product Views

Product Views

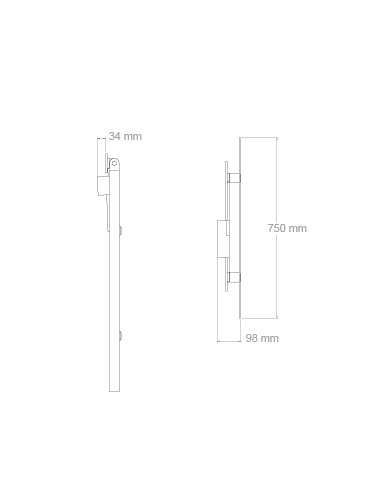

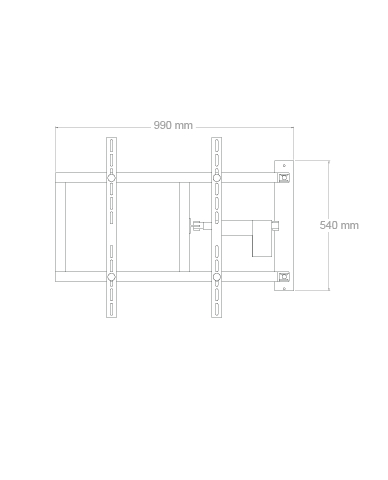

Technical Drawing

Technical data

TV dimensionsTV weightFitting dimensions

30 – 42 inches

W = max. 1050

D = max. 120 mm

(H = not relevant)

max. 30 kg

300 N

incl. casing
W = 990 mm
D = 98 mm
H = 750 mm
Lifting limitNoise levelRoom control
adjustable to the mm (optional) < 40 dB connection possible
Lifting / lifting speedWall mounting bracketWarranty

swivelling angle 90°

5°/sek
W = 80 mm
H = 540 mm

5 years full service

30 years LRCL*



Request PDF Manual Product Datasheet PDF

Delivery includes

Delivery includes

Flat­lift Superflat Swivel, control box, 230 V power cord, motor cable, 12 V wall power supply for radio receiver, 433.92 Mhz 2-channel radio receiver, 433.92 Mhz 2-channel radio transmitter

Price on request. Product number: 10120

Flatlift APP available now!

Flatlift APP available now!

Operate your Flatlift via smartphone,
tablet or iPhone with our unique Flatlift App.
Read more about in our blog.

5 Years Guarantee!

5 Years Guarantee!

Flatlift offers a 5 year guarantee starting at the silver series. As an extra there are many other special services provided for your no worries tv-lift project.

<span class= Savings tip: Get your Flatlift at a special price">

Savings tip: Get your Flatlift at a special price

Save yourself some money with a demonstration model. Ask for available models: +49 (0) 6241 30560 0.

You would like to find out more about our TV lift systems?

We gladly advise you on our TV lift systems or we will get back to you with detailed information on your enquiry as quickly as possible. Just talk to us.
