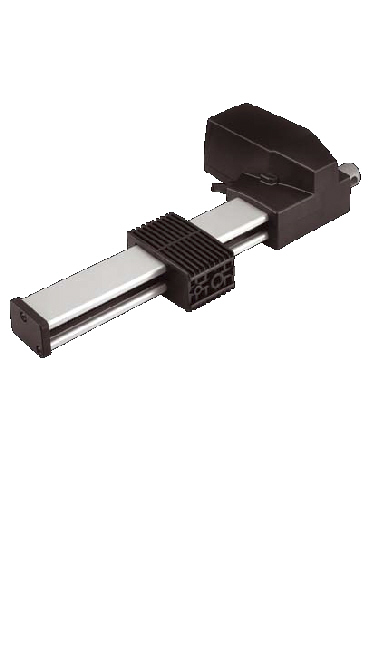

ACTUATOR FL29
Features:
• 24 V DC permanent magnet motor
• Thrust up to 6000 N
• Duty cycle: Max 10% or 2 minutes continuous use
followed by 18 minutes not in use.
• Ambient temperature: +5° to + 40°C
• High-strength plastic housing protecting motor
and gears
• Elegant and compact design with very small
installation dimensions
• Colour: black plastic parts and natural anodized
aluminium profile.
• 2.4 m straight cable with 6.3 mm DIN-plug.
• Built-in limit switches (not adjustable)
• Metal back fixture
• Flexible back fixture (similar to FL10
"L2 version" and FL10 with quick
release).
• The flexible back fixture enables up to
4000 N in pull.
• The FL29 actuator is approved according to
EN 60335-1 and will also be approved according
to UL 73
Options:
• Brake that increases the self-locking ability
• Reed switch (8 pulses per spindle revolution) for
exact positioning of memory control and
compatible with CB9 with microprocessor
Product manual PDF
Delivery includes
The adjusting FL29 is a drive that is designed specifically for domestic applications. The short distance between the attachment points he has a very small installation dimensions, that is regardless of the stroke. Therefore, the drive is ideal for recliners with standing up. Another special feature is the flexible back fixture, which can compensate for misalignment of the mounting points, such as recliners.
