Technical data
Features:
• The FLC CBD4 can be connected with up to 4 actuators/
columns
• Mains voltage 120 V AC / 60 Hz or 230 V AC /
50 Hz
• Compact high-power toroidal transformer
• The power consumption in stand-by mode is
only 0.1 Watt with FLC CBD4 ZERO
• Colour: black
• Exchangeable standard mains cable
• Protection against overload (EOP), by
individual current limitation
• The control box is designed with a soft
start/stop function
• A hook for mains cable relief
• Auto detection of the number of units connected
• Auto detection of leg/unit type connected
Options:
• SLS input
• Anti-Collision
• Mains cut-off
• Simulator function (for life tests or demonstration
at exhibitions)
• Configurator for local configuration or programming
• Multi-parallel for up to 16 legs in parallel
Usage:
• Duty cycle max. 10 % ~ 6 min. per hour or 2 min. at
continuous use at full load
• The control box is compatible with FL10 FL50 built-in
actuators or the FL10 for single or parallel drive
• Compatible with all FLB controls
• Approved according to EN 60335-1, UL 962 and
will be approved according to the Australian
Standard AS/NZS3197
Product manual PDF
Delivery includes

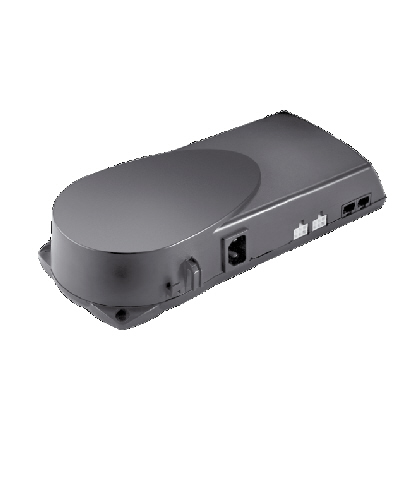

The FLC CBD4 control box is the most sophisticated control box within the product range and it is the perfect choice for all types of desks. The Flatlift FLC CBD4 ensures that the Flatlift has a very low and pleasant noise level and a constant speed level.
The control box is compatible with a wide range of columns,built in actuators and the FL10 single actutor with hall print and mini fit cable, optimising logistics as you only need one box for each system.
The FLC CBD4 ensures optimised parallel drive for 2, 3, or 4 legs in parallel or a smooth drive as a single leg control box. The control box has an extreme low power consumption of only 0.1 W in standby mode.
