Flatlift linear actuators offer an incredibly wide range of applications. With an electric linear drive you can move, for example doors and drawers, our spindle drives you can use for a TV Lift DIY project. In general Flatlift provides different linear and spindle drives in order to implement a manual activity performend in an electrically motorized movement. Whetjer spindle drive, linear drive, or other electrical drives - Flatlift has the expertise from thousands of projects that are based in the area linear electric drive technology. Call us today to improve your Motion!
Here you can buy linear actuators and lifting columns and Linak Desk Frame 2 online around the clock.
Choose a product variant:
Product Views
Product Views
Technical data

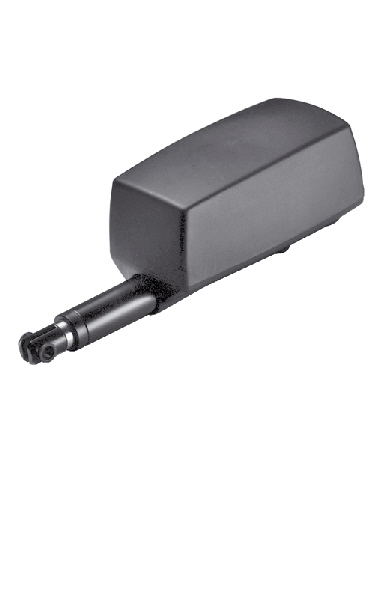

ACTUATOR FL32
Features and options:
• 24V DC permanent magnet motor
• Thrust up to 6000 N (with ball screw)
• Stainless steel piston rod
• High-strength plastic housing protects motor and
gears
• Elegant and compact design with small
installation dimensions
• Protection class: IPX1
• Colour: black
• 2250 mm straight cable with 6.3 mm jack plug
• Low noise level: 46 dB (A); measuring method
DS/EN ISO 3746, actuator not loaded
• FL32K with ball screw and double-acting brake
(i.e. push and pull/both directions)
• Protection class: IPX5 or IPX6
• Reed-switch for exact positioning (8 pulses per
spindle revolution)
• FL32 with 5mm. pitch F: Manual quick release
• FL32 with 5mm. pitch FH: Manual quick release
with dampened movement
• Mechanical splines function (push only)
• Electrical splines function, built-in micro-switch in
back fixture, the actuator can therefore only be
used for push. (Only on 01 and 02 back fixture)
• FL32K with ball screw and double-acting brake
(i.e. push and pull/both directions)
• FL32KAS with ball screw and safety nut
• FL32KSM with ball screw, safety nut and
mechanical splines
• Available with 0.2 m or 0.4 m coiled cable
• FL32JKSM available with 2-speed facility
• CS32; electronic limit switch (built-in)
Product manual PDF
Delivery includes
The FL32 is a powerful linear actuator, which can be equipped with a spindle in order to achieve exceptional performance. It is the ideal choice for a very large number of applications, such as the height regulation of hospital beds. The FL32 is available with many amenities such as safety nut, splines, quick release (F) and protection to IPX6 standard.
