You would like to find out more about our TV lift systems?
We gladly advise you on our TV lift systems or we will get back to you with detailed information on your enquiry as quickly as possible. Just talk to us.
Flatlift linear actuators and linear motors.
Linear Motors / controlboxes
Typical product installations
A Bar with 2 Wine Bottles is moving straight out of the table
Flatlift linear actuators offer an incredibly wide range of applications. With an electric linear drive you can move, for example doors and drawers, our spindle drives you can use for a TV Lift DIY project. In general Flatlift provides different linear and spindle drives in order to implement a manual activity performend in an electrically motorized movement. Whetjer spindle drive, linear drive, or other electrical drives - Flatlift has the expertise from thousands of projects that are based in the area linear electric drive technology. Call us today to improve your Motion!
Here you can buy linear actuators and lifting columns and Linak Desk Frame 2 online around the clock.
Choose a product variant:
Product Views
Product Views
Technical data

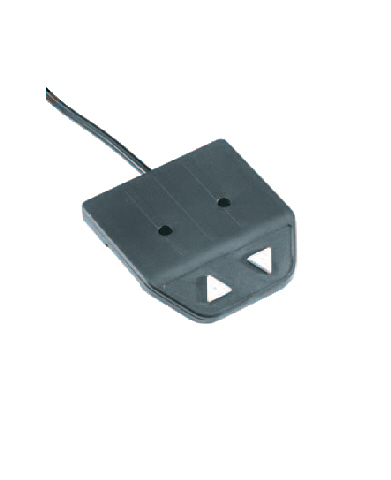

The compact design and mounting friendliness
of the FLB makes it an optimum choice of desk
panel for height adjustable desks where only up
and down functions are required. The raised up
and down buttons shaped as arrowheads make
the panel very intuitive to use. The panel is compatible
with all FLC control boxes. As an option the FLB can be mounted in a drawer, so when not in use the panel can be hidden under
the desk and blend perfectly into the desk design.
Features:
• Control panel for either one single or one
parallel system
• Colour: Charcoal grey RAL 7016, buttons RAL 7038
• Plastic housing with mounting holes (Flatlift does
not supply the screws)
• 1580 mm straight 3-core black cable with
telephone plug RJ45
• Soft rubber buttons
Options:
• Customised front cover
• Drawer (separate article)
Usage:
• Ambient temperature +5 °C to +40 °C
• Compatible with FLC CBD4, CBD5 and CBD6
• Approved according to EN 60335-1 and UL 962
Product manual PDF
Delivery includes
The compact design and easy installation make the FLB to an optimal control for height adjustable tables, the on-and only to be moved down. The highlighted buttons in the shape of arrowheads for intuitive use. The control is compatible with all FLB FLC control boxes. Optionally, the FLB are supplied with a recording so that it discreetly mounted under the table and can be perfectly adapted to the design table.
