Technical data

Features:

• Compact design where the guide and actuator
function is an integrated unit
• Short cable mounted on the FL50 for connection
to the FLC CBD4/CBD5 with a separate motor cable
• Max. thrust: 800 N (per leg)
• Max. speed: 38 mm/s
• Installation dimension: 645 mm
• Stroke length: 500 mm
• Dimensions column: 43.5 mm x 73.5 mm (outer
tube) and 37 mm x 67 mm (inner tube)
• Dimension motor housing: 177 x 97 x 46 mm
• Bending moment: My = max. 150 Nm dynamic
• Colour: Available in black (RAL 9005), silver grey
(RAL 9006) or white (RAL 9016)
• Low noise level
• Hall sensor enables parallel drive with FLC CBD4/
CBD5
Usage:
• Duty cycle: 10 % ~ 6 min. per hour or 2 min. continuous
use at full load
• Ambient temperature: +10° to +40 °C
• Compatible with the CBD4/5 control boxes and
all FLB controls



Product manual PDF

Delivery includes

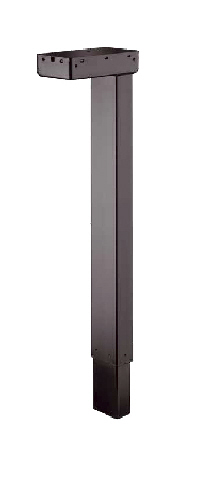

The FL50 LIFT is a compact 2-part lifting column, which combines the guide and the actuator function. The FL50 column is an upside down column where the smallest profile is mounted on the foot construction. The FL50 is intended for desks without crossbar which ensures optimum freedom of desk design.

The FL50 system is controlled by the FLC CBD4or the FLC CBD5control box ensuring optimal parallel drive and a pleasant low noise level. The FL50 is available as a single unit or for 2, 3 or 4 parallel systems or even in a multi-parallel system with up to 16 columns in parallel.
